인터피엔

공조시스템

HOME > 제품소개 > 공조시스템

페이지정보 : 3 / 12

제품 목록
Photo	Model	Standard	Catalogue
	TA300	휴대용 온도, 유속, 유량 측정계 측정범위 Air flow speed : 0.1 ~ 25m/s, 0.3 ~ 90 km/h Temperature : 0 ~ 50℃ 정확도 Air flow speed : ± (5% of the measuring value) Temperature : ± 1℃

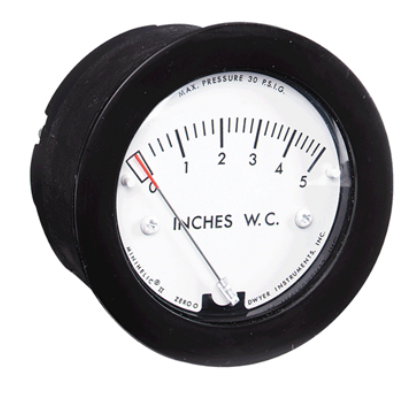

	Dwyer Series-2-5000	Ambient Temperature Range: 20°F to 120°F (- 6.7°C to 49°C). Accuracy: ± 5% of full scale at 70°F (21.1°C)

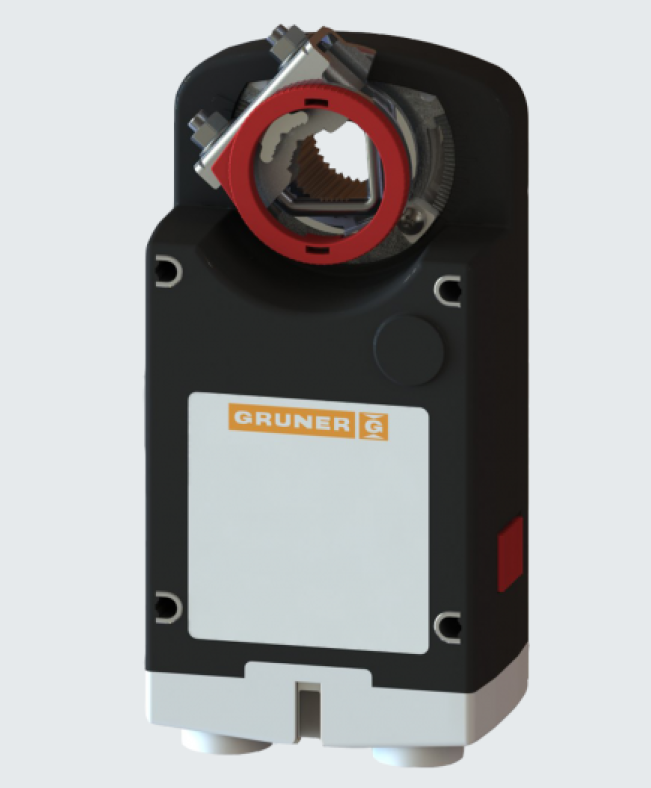

	363-024-20	Torque Motor : 20 Nm Nominal Voltage : 24 VAC/DC Control : 2/3 Point Valve size : up to approx. 4 m² Damper coupling : Clamp 9-18 mm/ Ø 9-26 mm

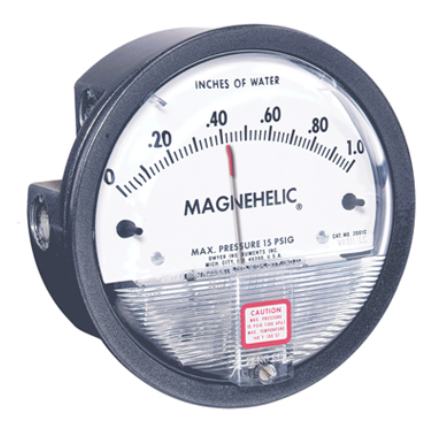

	Dwyer Series-2000	Presure Limits : -20 in Hg to 15psig. (-0.677 bar to 1.034 bar) MP option; 35 psig (2.41 bar), HP optionl; 80 psig (5.52 bar). Accuracy : 2% of FS Temperature Limits : 20 to 140℉(-6.67 to 60℃ )
	KINS M-2000	Range : 0.1Kpa + 0.1Kpa -10Kpa ~ 10Kpa, 0-50Kpa Accuracy : ±2.0% of full scale Diameter : 100mm Working temperature : -10~60℃
