제품 목록
Photo	Model	Standard	Catalogue
	PTL	Measurement range (bar) : 0..16 bar Accuracy (typ. %/FS): ±1.0 % (temperature: -20...85 °C)

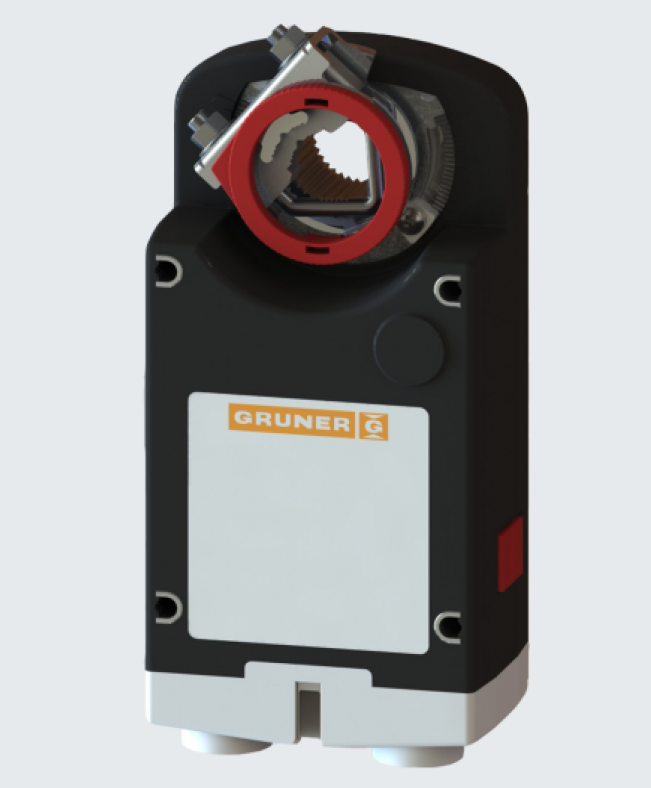

	363C-024-40	Torque Motor : 40 Nm Nominal Voltage : 24 VAC/DC Control : Continuous DC 0(2)...10 V Valve size : up to approx. 8 m² Damper coupling : Clamp 9-18 mm/ Ø 9-26 mm
	GMT220 series	측정범위 - GMT221 : 0…2%, 0…3%, 0…5%, 0…10%, 0…20% - GMT222 : 0…2000ppm, 0…3000ppm, 0…5000ppm, 0…7000ppm, 0…10,000ppm 정확도 - GMT221, GMT222 : ±1.5% of range +2% reading 출력 - Current output 0…20mA, 4…20mA - Voltage output 0…10V 전원 -?nominal 24VAC/DC
	DPT 100	측정범위 - 차압 : -50…+50Pa or -100…+100Pa 정확도 - 차압 : ±1.5% over operating temp. -10…+50℃ 출력 - Current output 4…20mA 전원 - 10…35VDC
	IVL10	Ranges Velocity 0…10 m/s Temperature 0…50 °C Accuracy Velocity ±0.5 m/s ±7% from reading (at 25°C) Temperature ±0.5 °C (25 °C, > 0.5 m/s) Operating temp. 0…50 °C
