인터피엔

공조시스템

HOME > 제품소개 > 공조시스템

페이지정보 : 6 / 11

제품 목록
Photo	Model	Standard	Catalogue
	CMD	측정범위 - CO : 0…50ppm, 0…100ppm, 0…150ppm 0…200ppm, 0…250ppm, 0…300ppm 0…500ppm 분해능 - ±3ppm 출력 - Current output 4…20mA 전원 - 18…28VAC/DC

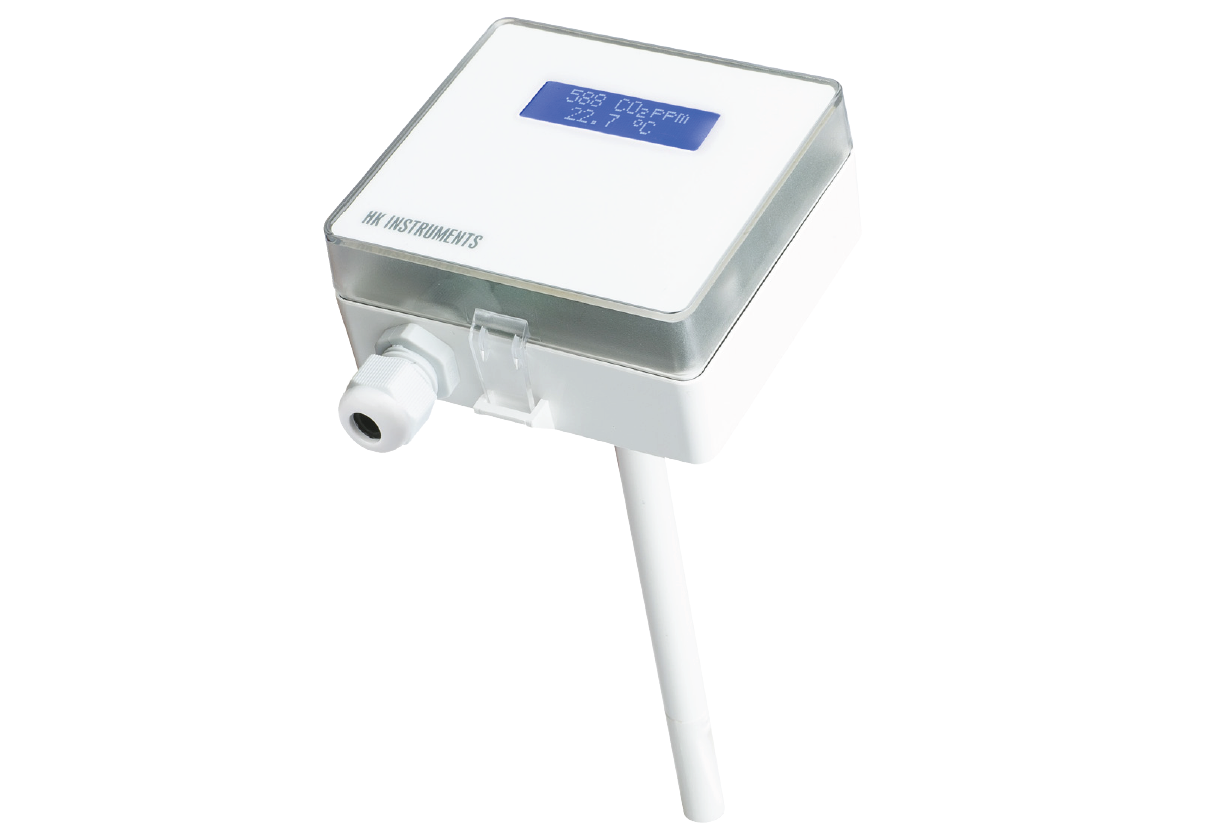

	CDT2000 D/RHT DUCT	측정범위 : CO2_ 400~2000 ppm Temperature_ 0...50 °C 정확도 : CO2_ ±40 ppm + 2 % of reading Temperature_ <0.5 ºC 공급전압 : 24 VAC or VDC ±10 % 출력: 0/2...5/10 VDC CO2 온도센서 CDT2000 DUCT / RHT DUCT HVAC(공조시스템)의 구축을 위해 설계
	DHT Series	Humidity Range : 0 ~ 100%RH Dew point Range : -20℃ to +80℃ or -50℃ to +100℃ Output : 0~10 Vdc or 4~20mA Power supply : 24 Vdc Protection class : IP65
	TH-20IND	모델 : 1채널용 or 2채널용 입력 : 2-Wire, mA, RTD, T/C, V 정확도 : ±0.2% 디스플레이크기 : 3inch 출력 : 4...20mA, RS485/422 (Optional) 전원 : AC95~250V_50~60Hz
	362-024-20-S2-ST03/8Fx	Torque Motor : 20 Nm Nominal Voltage : 24 VAC/DC Control : 2 point Connection : 2x fixed, not adjustable Auxiliary switch Connector : for COMES, BKN, BKE,RBFU Damper shaft adaption form closure 8 mm (8F 8) form closure 10 mm (8F10) form closure 12 mm (8F12)
