제품 목록
Photo	Model	Standard	Catalogue

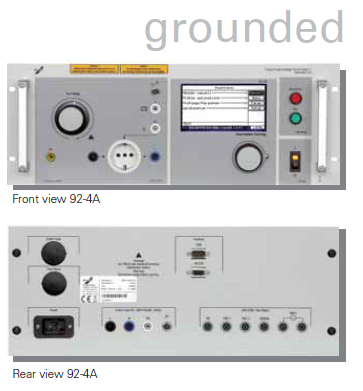

	92-4A	Test voltage: Mains .. 280 VAC internal 50 .. 280 VAC external Test current: 0 .. 15 A Measurement ranges: 0 .. 100 μA , 0 .. 1.00 mA ,0 .. 10.0 mA Test methodology: varies accord. to standard Interface: RS232-C Line voltage: 230 V ± 10%; 49 .. 61 Hz Dimensions: 19“ / 4 HU Weight: 31 kg

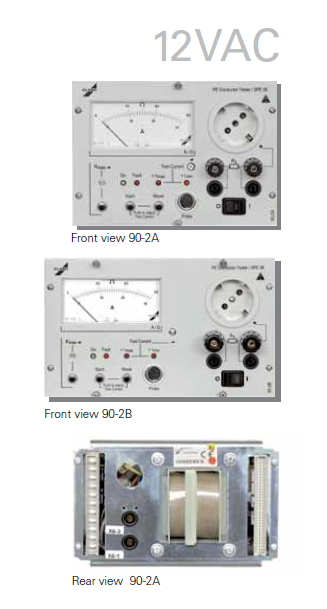

	90-2A / 90-2B	Test voltage: 12 VAC Measurement range: 0 .. 300 mΩ Test current: 10 .. 25 A , 10 .. 30 A Interface: digital , Analog output Line voltage: 230 V +/- 10%; 49 .. 61 Hz Dimensions: 3 HU , 36 HP; 3 HU , 42 HP Weight: 6 kg , 7 kg

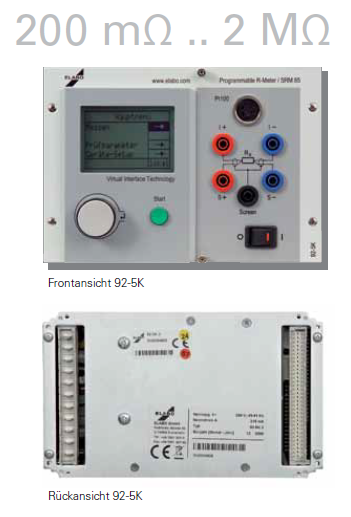

	92-5K	Measurement ranges: 200 mΩ 2 , 20 , 200 Ω 2 , 200 , 2000 kΩ Temperature compensation: - 50 .. + 250°C Measurement error: 0.1% of meas. + 0.05% of meas./K + 2 digit Measurement current: 100 mA .. 1 μA Measuring rate: max. 3/s Interface: RS232-C Line voltage: 230 VAC ± 10%; 49 .. 61 Hz Weight: 3 kg

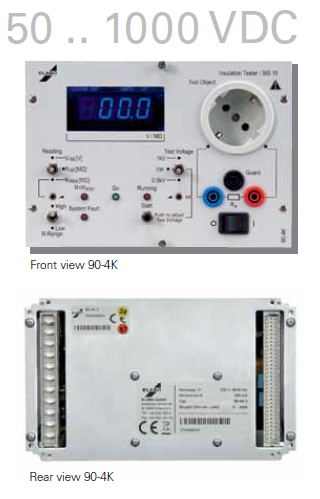

	90-4K	Test voltage: 50 .. 550 VDC 500 .. 1000 VDC Measurement ranges: 0 .. 10 , 100 , 1000 MΩ Test current: < 12 mA Interface: digital , Analog output Line voltage: 230 V +/- 10%; 49 .. 61 Hz Dimensions: 3 HU / 36 HP Weight: 2.8 kg

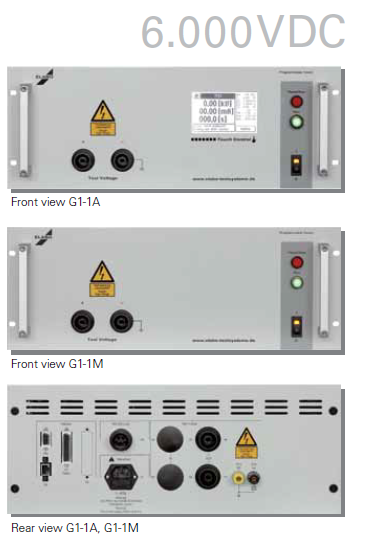

	G1-1A / G1-1M	Test voltage: 0.05 .. 6.00 kV Output: 30 W Tripping current: 0 .. 500 μA , 0 .. 5.00 mA Interface: Ethernet , digital interface 1 Line voltage: 230 V / ± 10 %; 49 .. 61 Hz Dimensions: 19“ / 4 HU; depth 360 mm Weight: 15 kg / 14 kg
